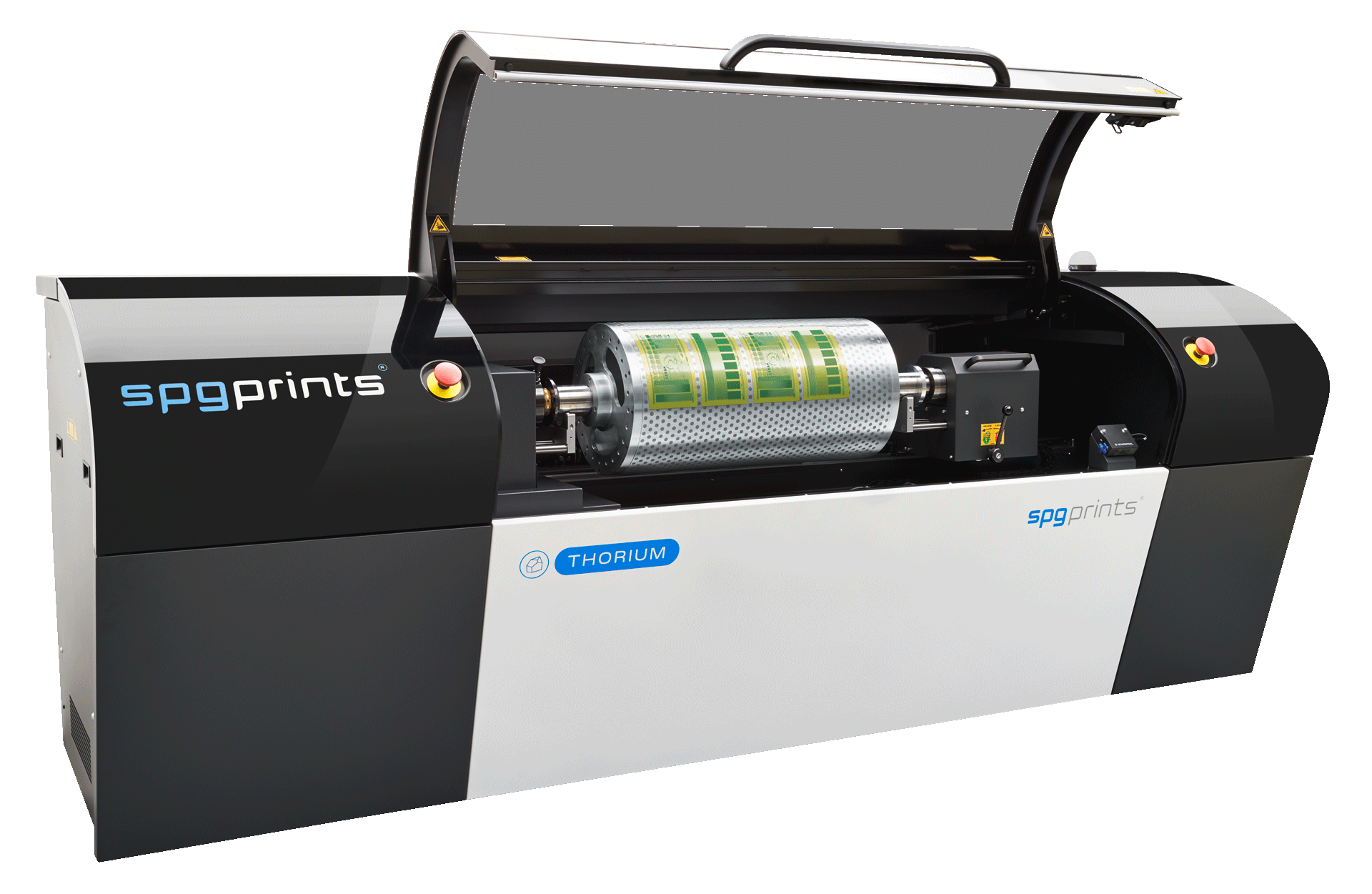

THORIUM. "ALL IN ONE" direct laser engraver for multiple applications

With the THORIUM, printers can now produce the highest quality print with a shorter, solvent-free process, by longer runs and multiple cost saving potentials in the printing process.

THORIUM-1

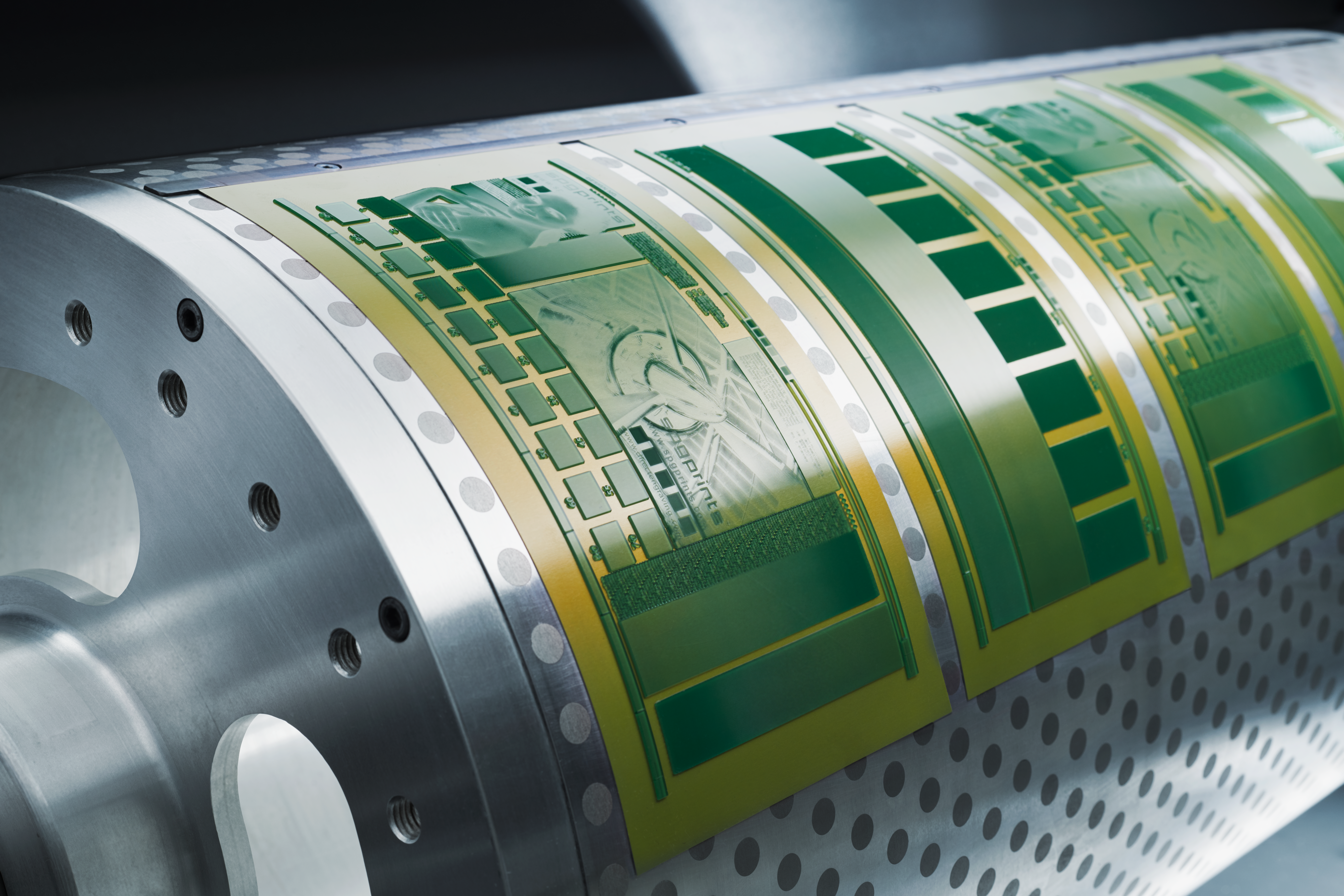

Thorium-Detail-6
THORIUM
laser source

At a glance


  • Multiapplicational system:
    Dry offset / Intaglio / Varnish / Screen
  • Solvent-free process/ecofriendly: single step dry process
  • No gas consumption:
    sealed CO2 laser generator
  • Lower operational costs:
    - no process gas costs
    - automatic „standby mode“

High quality pre-press solution

The THORIUM direct laser engraver is a cutting-edge solution that produces high-quality print materials for various applications. Whether you’re in the dry offset, security printing, screen printing, flexo, or embossing industry, THORIUM delivers exceptional results. It's versatility extends beyond conventional boundaries, making it an indispensable tool for modern pre-press.

Watch our video!



Talk with an expert!

Get expert advice!
Specifications THORIUM

Useful facts about THORIUM

Laser

sealed CO2 laser

Resolution

variable up to <10.160 dpi

Cylinder mounting surface

max. 900mm x R1256

Sleeve diameter (outside)

60 - 400 mm (3,4 - 15 inch)



Sleeve width

150 - 950 mm (5,9 - 37,4 inch)

Dimension machine LxWxH

3400 x 1300 x 1315/1860 mm

THORIUM

THORIUM-1

“The THORIUM direct laser engraving system, which replaces our successful HELIOS, is a proven solution for creating high-quality printing forms across various applications.”



Chemical-free approach enhances sustainability

The system employs a unique single-step dry process to eliminate non-printing areas by simply burning away the polymer. There is no need to handle or store chemicals. After engraving, the customer doesn’t need to further process the print form or take any additional steps.

workflow_thorium_dle-01

Lower operational costs

A perfectly coordinated software (in-house developed CAD/CAM) and hardware achieves streamlining workflows, reducing process steps, and allowing multiple print forms to be used on a single machine. Additionally, the new CO2 laser generator eliminates the need for process gas and integrates an automatic standby mode, resulting in significant operational cost savings.

Benefits
concept-2791440_1920

High accuracy and customized dot shaping of the image

The THORIUM boasts the capability to engrave forms at an impressive resolution of 10,160 dpi—exceeding the limits allowed for the plates themselves in terms of dot size and resolution.

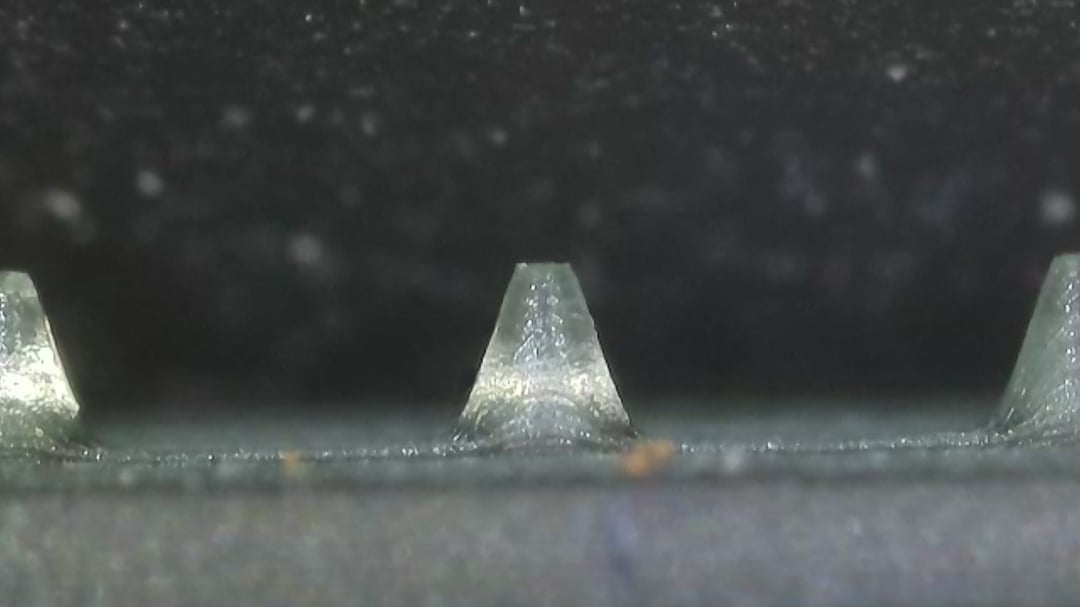

A unique Active 3D®-RIP system, developed in-house, enables three-dimensional dot shaping for printing forms. This innovative approach prevents over-impression of smaller elements by positioning them below the printing surface, ensuring they print consistently alongside larger elements, resulting in exceptionally fine results with extreme accuracy and repeatability.

active 3D RIP_dot-1



Benefits
Bild 1
